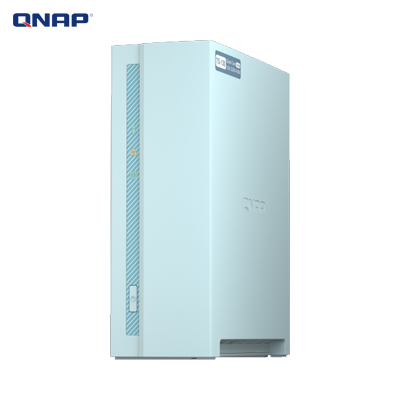

QNAP TS-130

Hardware Specification TS-130

CPU Realtek RTD1295 quad-core 1.4GHz processor

CPU Architecture 64-bit ARM

Floating Point Unit  Yes

Encryption Engine Yes

System Memory 1 GB DDR4, not expandable

Maximum Memory  1 GB DDR4, not expandable

Flash Memory 4 GB (Dual boot OS protection)

Drive Bay 1 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility  3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Gigabit Ethernet Port (RJ45)  1

5 Gigabit Ethernet Port Optional via the QNA-UC5G1T USB to 5GbE network adapter

(5G/2.5G/1G/100M)

Wake on LAN (WOL) Yes

Jumbo Frame  Yes

USB 2.0 port 1

USB 3.2 Gen 1 port 1

Form Factor Tower

LED Indicators System Status, LAN, HDD

Buttons  Power, Reset

Dimensions (HxWxD) 187.5 × 66.1 × 157.6 mm

Weight (Net)  0.61 kg

Weight (Gross) 1.22 kg

Operating temperature 0 - 40 °C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit 36W Adapter, 100-240V

Power Consumption: HDD Sleep Mode 3.45 W

Power Consumption: 7.29 W

Operating Mode, Typical

Fan 1 x 50mm, 12VDC

Sound Level 15.2 db(A)

System Warning Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory 128

Software Specs

Operating System: QTS 4.4.1 (embedded Linux)

Supported Client Operating Systems

Apple Mac OS 10.7 or later

Linux and UNIX

Microsoft Windows 7, 8, and 10

Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016, 2019

Supported Browsers

Apple Safari 7 or later

Google Chrome

Mozilla Firefox

Supported Languages

Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
