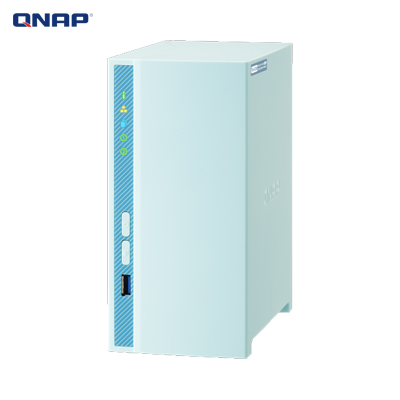

QNAP TS-230

Hardware Specs QNAP TS-230

CPU Realtek RTD1296 quad-core 1.4GHz processor

CPU Architecture 64-bit ARM

Floating Point Unit

Encryption Engine

Hardware-accelerated Transcoding

System Memory 2 GB DDR4, not expandable

Note: Reserves some RAM for use as shared graphics memory.

Maximum Memory 2 GB DDR4, not expandable

Flash Memory 4 GB (Dual boot OS protection)

Drive Bay 2 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility 3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives

Hot-swappable

Gigabit Ethernet Port (RJ45) 1

Wake on LAN (WOL)

Jumbo Frame

USB 2.0 port 1

USB 3.2 Gen 1 port 2

Form Factor Tower

LED Indicators System Status, LAN, USB, HDD1~2

Buttons Power, Reset, USB Copy

Dimensions (HxWxD) 188.64 × 90.18 × 156.26 mm

Weight (Net) 1.98 kg

Weight (Gross) 2.01 kg

Operating temperature 0 - 40 °C (32°F - 104°F)

Storage Temperature -20 - 70°C (-4°F - 158°F)

Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit External, 65 W, AC 100 to 240 V

Power Consumption: HDD Sleep Mode 4.48 W

Power Consumption: Operating Mode, Typical 12.277 W

Tested with drives fully populated.

Fan 1 x 80mm, 12VDC

Sound Level 15 db(A)

System Warning Buzzer

Max. Number of Concurrent Connections (CIFS) - with Max. Memory 200

Software Specs

Operating System: QTS 4.4.1 (embedded Linux)

Supported Client Operating Systems

Apple Mac OS 10.7 or later

Linux and UNIX

Microsoft Windows 7, 8, and 10

Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016, 2019

Supported Browsers

Apple Safari 7 or later

Google Chrome

Mozilla Firefox

Supported Languages

Chinese (traditional and simplified), Czech, Danish, Dutch, English, Finnish, French

German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil)

Romanian, Russian, Spanish, Swedish, Thai, and Turkish
