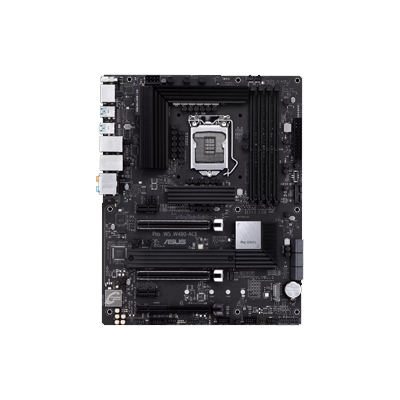

ASUS PRO WS W480 ACE

Tech Specs:

CPU: Intel® Socket 1200 for 10th Gen Intel® Xeon® Core™ , Pentium® Gold and Celeron® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® W480
Memory: 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). ECC Memory (ECC mode) support varies by CPU.
Thunderbolt: 2 x Intel® Thunderbolt™ 3 ports(TypeC™) support DisplayPort and Thunderbolt™ video outputs
Supports DisplayPort 1.4/ with max. resolution 7680/ x 3840/@ 60 Hz*
* VGA resolution support depends on VGA cards´ resolution.
Data transfer rate up to 40 Gbps
Daisy-chain up to 12  Thunderbolt devices
Up to 5V/3A, 15W charging support
Graphic: Integrated Graphics Processor
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
*Graphics specifications may vary between CPU types.
**Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots: Intel® 10th Gen Processors
2 x PCIe 3.0 x16 (x16 or dual x8) *1
Intel® W480 Chipset
1 x PCIe 3.0 x16 (x4 mode) *2
2 x PCIe 3.0 x1
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® W480 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*4
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready
LAN: Intel® I225-LM 2.5Gb Ethernet ; Realtek® RTL8117
Audio: Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Front Panel MIC Jack-retasking, up to 24-Bit/192kHz playback
- High quality 120 dB SNR stereo playback output and SNR recording input
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Audio Cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
Intel® Thunderbolt™ 3 Controller :
2 x USB 3.2 Gen 2 port(s) (USB Type-C®); Rear USB Port ( Total 6  ); 4 x USB 3.2 Gen 2 port(s)(4 x Type-A); 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
Front USB Port ( Total 7  ) ; 1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®); 2 x USB 3.2 Gen 1 port(s)(2 x Type-A); 4 x USB 2.0 port(s)
Operating System Support: Windows® 10 64-bit
Software Features
ASUS Exclusive Software; Armoury Crate; AI Suite 3
Performance And Power Saving Utility
- TPU; EPU; Digi+ VRM; EZ update; Fan Xpert 4; Turbo app
IT Management software supported
- ASUS Control Center Express(ACCE)
AI Charger; ASUS Turbo LAN; WinRAR; UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED
- ASUS Q-Shield
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Procool II
- SafeSlot
Out-of-band Management
- BIOS Update Indicator LED
- LAN Initialization Indicator LED
Back I/O Ports
2 x Thunderbolt 3 ports TypeC™
2 x DisplayPort IN ports for Thunderbolt™ 3
1 x HDMI
1 x LAN (RJ45) port(s)
1 x LAN (2.5G) port(s)
4 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1 Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 1 USB 3.2 Gen 1 port(s) (20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt) x With flexkey function
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessories
1 x ACC Express Activation Key Card
I/O Shield
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x DisplayPort cable
User manual
1 x CPU Fan Holder
1 x 2-in-1 Rubber pad
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Manageability; WOL by PME, PXE
Operating System: Windows® 10 64-bit
Form Factor: ATX Form Factor 12  inch x 9.2  inch ( 30.5  cm x 23.4  cm )
Note
*1 Support PCIe bifurcation for RAID on CPU function.
*2 PCIe 3.0 x4 will be switched from Thunderbolt™ 3 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 3 will have no output.
*3 When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
*4 M.2_2 runs at PCIe 3.0 x2 by default and shares bandwidth with SATA6G_56. When M.2_2 runs at PCIe 3.0 x4 or is populated by H10, SATA6G_56 will be disabled.
*5 Please refer to the user manual for more details about DisplayPort input and Type-C output settings
*6 Intel® Xeon® W-1200 and non-K processors may not support some memory clocks including 3000, 3400, 4500, 4600 MHz
