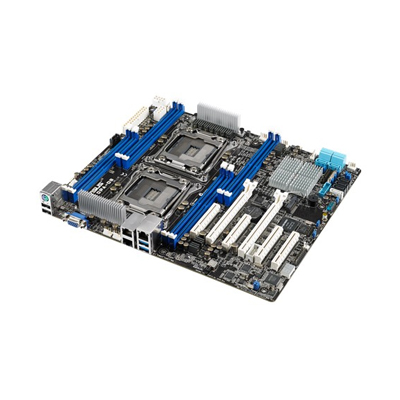

Asus Z10PA-D8

Processor / System Bus

2 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.)

Intel® Xeon® processor E5-2600 v4 product family

Intel® Xeon® processor E5-2600 v3 product family

QPI 6.4 / 8.0 / 9.6 GT/s

Core Logic Intel® C612 PCH

Memory Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU)

Capacity : Maximum up to 512GB LRDIMM

Memory Type :

DDR4 2400 /2133 /1866/1600/1333 RDIMM*

DDR4 2400 /2133 /1866/1600/1333 LRDIMM*

Memory Size :

32GB, 16GB, 8GB, 4GB RDIMM ; 64GB, 32GB LRDIMM

Expansion SlotsTotal Slot : 6

Form Factor

ATX (12"x10", 305mm x 254mm)

ASUS Features

FAN speed control

Rack Ready (Rack and Pedestal dual use)

ASWM Enterprise

Storage

SATA Controller : Intel® C612

10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector *1

Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only)

(Support Software RAID 0, 1, 5, 10 )

LSI® MegaRAID (For Linux/Windows)

(Support Software RAID 0, 1, 10 )

SAS Controller :

ASUS PIKE II 3008 8-port SAS HBA card(Optional)

ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)

Networking 2 x Intel® I210AT + 1 x Mgmt LAN

Graphic Aspeed AST2400 with 32MB VRA
