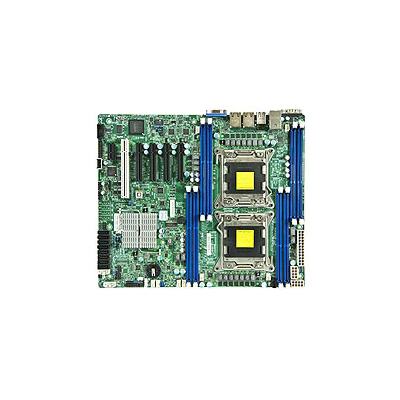

Supermicro X9DRL-IF

Key Features

1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†

2. Intel® C602 chipset; QPI up to 8.0GT/s

3. Up to 512GB ECC DDR3, up to 1866MHz; 8x DIMM slots

4. Expansion slots: 1 PCI, 1 PCI-E 2.0 x1 3 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8)

5. Intel® 82574L GbE LAN, 2 ports

6. 8x SATA2 and 2x SATA3 ports

7. Integrated IPMI 2.0 and KVM with Dedicated LAN

8. 9x USB 2.0 ports (4 rear, 4 via header + 1 Type A)
