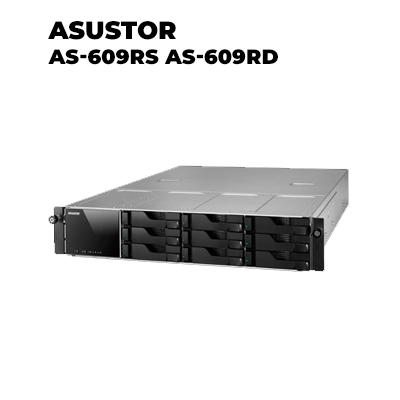

Asustor AS-609RS AS-609RD
CPU: Intel® Atom™
RAM: 1GB SO-DIMM DDR3
HDD: 3 x SATA2 3Gb/s, 6 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
External port: USB 3.0 x 2, USB 2.0 x 4, eSATA x 2
Network: Gigabit Ethernet x 2
HDMI Output : N/A
Power Supply Unit / Adapter :
AS-609RS 300W x1; AS-609RD 300W x2
AS-609RS x1 / AS-609RD x2
Hardware Specifications
CPU
CPU Model Intel® Atom™
CPU Architecture x64 64-bit
CPU Frequency Dual-Core 2.13 GHz
Memory
Memory 1GB SO-DIMM DDR3
Memory Module Pre-installed 1GB (1x1GB)
Total Memory Slots 2
Memory Expandable up to 3GB (1GB+2GB)
Support mixed capacity
Flash Memory
Storage
HDD 3 x SATA2 3Gb/s, 6 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
Maximum Internal Raw Capacity 162 TB
(18 TB HDD X 9, Capacity may vary by RAID types)
Maximum Drive Bays with Expansion Unit 17
Maximum Raw Capacity with Expansion Units 306 TB
(18 TB HDD X 17, Capacity may vary by RAID types)
Supports Hot Swappable Drives
External Ports
Expansion USB 3.0 x 2, USB 2.0 x 4, eSATA x 2
Network Gigabit Ethernet x 2
HDMI Output HDMI 1.3a x1
Others
System Fan 60mm X2
Power Supply Unit / Adapter AS-609RS 300W x1; AS-609RD 300W x2
AS-609RS x1 / AS-609RD x2
Input Power Voltage 100V to 240V AC
