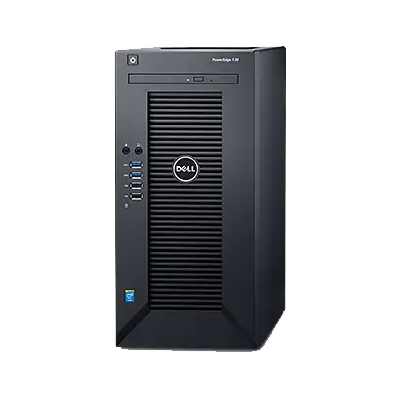

Máy chủ Dell Poweredge T30
Form Factor: Mini Tower
Processor: Intel Xeon E3-1225 v5 3.3GHz, 8M cache, 4C/4T, turbo (80W)
Memory: Dell 8GB DDR4 ECC UDIMM
(4 DIMM slots, up to 64GB DDR4 2133MT or 2666 MT )
Hard Drive: 1TB 7.2K RPM SATA 6Gbps Entry 3.5 inch
Support 4 x 3.5” SATA HDDs come standard
Raid Controller: Intel Rapid Storage Controller 12.0 (supports SATA 6Gb/s or SATA 3Gb/s)
PCI-Express Slots: 4 slots
Network Controller: Intel I219-LM GbE LAN 1-port
Management : Intel AMT 11.0
Optical Drive: DVD+/-RW
Power Supply: 290W
PowerEdge T30 Features Technical Specification
Form factor Mini tower
Dimensions H: 359.9 mm (14.17 in); W: 175 mm (6.89 in);D: 434.85 mm (17.12 in)
Processor Intel® Xeon® processor E3-1225 v5 ; Intel Pentium® G4400
Processor sockets 1; Cache 8MB cache on Intel Xeon E3-1225 v5 ;3MB on Pentium G4400
Chipset Intel C236
Memory 4 DIMM slots, up to 64GB DDR4 2133MT/s
I/O slots 1 PCIe x16 3.0
1 PCIe x16 3.0 (x4 speed)
1 PCIe x4 3.0
1 PCI
RAID controllers Software RAID: Intel Rapid Storage Controller 12.0
(supports SATA 6Gb/s or SATA 3Gb/s)
Hard drives Up to 6 total SATA HDDs
(4 x 3.5” SATA HDDs come standard. Purchase optional expansion kit adding 2 x 2.5” SATA HDDs
and optional controller card)
Optical drive SATA DVD +/- RW ships standard on Xeon configuration
Optional on Pentium Configuration
Embedded NIC Intel I219-LM GbE LAN 10/100/1000 1-port
Power supply 290W
Availability Error Correction Code (ECC) memory
Software RAID
Systems management Intel AMT 11.0 (Only on Intel Xeon CPU)
Operating systems Microsoft® Windows Server® 2012; 2012 R2; 2016 (only on ECC configuration)
Red Hat® Enterprise Linux®
