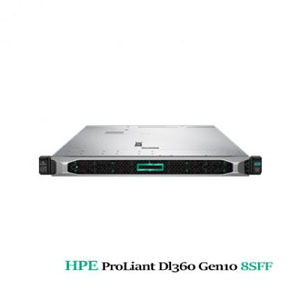

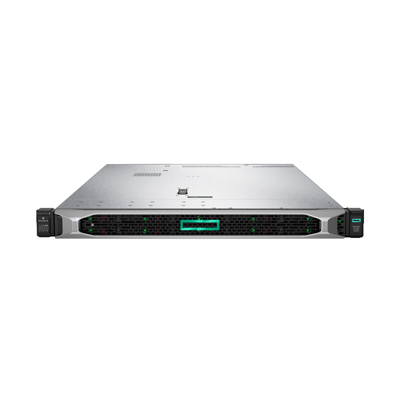

HPE ProLiant DL360 Gen10 4208

Liên hệ đ
    Mã sản phẩm: 16Gb 8 x 2.5 SFF

    Bảo hành: 36 Tháng

  • CPU: Intel Xeon Silver 4208 2.10Ghz 8C/16T 11MB Cache
  • RAM: HPE 16GB DDR4 Registered
  • HDD/SSD: Option
  • RAID: HPE Smart Array P408i-a SR
  • PCIe: 2 PCIe 3.0
  • Network: 1x1GbE 4p FLR-T I350
  • Optical Drive: Option
  • Power Supply: HPE 500W power supply
  • Lượt xem: 1267
Số lượng

HPE ProLiant DL360 Gen10 4208 16Gb 8 x 2.5 SFF

Form Factor 1U

Processor: Intel Xeon Silver 4208 2.10Ghz 8C/16T 11MB Cache

Memory: HPE 16GB DDR4 Registered

Hard Drive: Option

Internal Storage: 8 SFF SAS/SATA drives supported

Raid Controller: HPE Smart Array P408i-a SR

PCI-Express Slots 2 PCIe 3.0

Network Controller: 1x1GbE 4p FLR-T I350

Power Supply: HPE 500W power supply

Bộ vi xử lý CPU / PROCESSOR:

    x

Specifications HPE ProLiant DL360 Gen10 server

Processor Type Intel

Processor Family Intel® Xeon® Scalable 8100/8200 series - Intel® Xeon® Scalable 3100/3200 series

Processor Core Available 4 to 28 core, depending on model

Processor Cache Installed 8.25 - 38.50 MB L3, depending on processor

Maximum Memory 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit

Memory Slots 24 DIMM slots

Memory Type HPE DDR4 Smart Memory and HPE Persistent Memory, depending on model

NVDIMM Type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors

NVDIMM Rank Single rank

NVDIMM Capacity16 GB

Drive Supported 4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model

Network Controller Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model

Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)

System Fan FeaturesHot-plug redundant standard

Expansion Slots 3, for detailed descriptions refer to the QuickSpecs

Storage Controller HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model

Warranty Standard Statement 3/3/3 - Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage.

Processor Name Intel

Processor Number 1 or 2

Processor Speed 3.9 GHz, maximum depending on processor

Standard Memory 3.0 TB (24 X 128 GB) LRDIMM; 6.0 TB (12 X 512 GB) HPE Persistent Memory

SecurityOptional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

Form Factor 1U

Weight (imperial) 28.74 lb minimum, 37 lb maximum

Weight (metric)13.04 kg minimum, 16.78 kg maximum

Product Dimensions (imperial) SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in

Product Dimensions (metric) SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm
