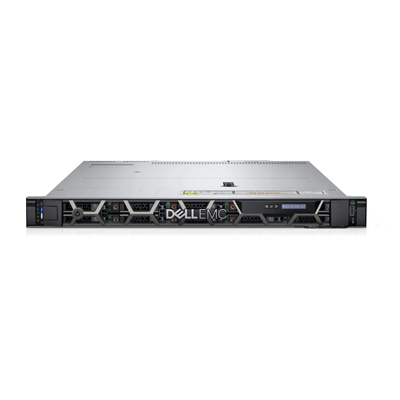

Máy chủ Dell EMC Poweredge R650xs 8x2.5"
Form Factor: 1U rackmount
Processor: Intel Xeon Silver 4310 2.1Ghz 12C/24T 18M Cache Turbo HT (120W)
Memory: Dell 16GB RDIMM 3200MT/s, Dual Rank,CK
Hard Drive: 1.2TB 10K RPM SAS 12Gbps 512n 2.5in Hot-plug
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Raid Controller: PERC H755
PCI-Express Slots: Up to 3 x PCIe Gen4 slots
Network Controller: DP 1GbE LOM + BC5720QP OCP
Remote management : iDRAC9Ent
Optical Drive: DVD Ext
Power Supply: Dual, Hot-plug, Redundant Power Supply (1+1), 800W
Tech Specs & Customization:
Processor: Up to two 3rd Generation Intel® Xeon® Scalable processors with up to 32 cores per processor
Operating System
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
Memory: DIMM Speed ; Up to 3200 MT/s
Memory Type: RDIMM
Memory Module Slots: 16 DDR4 DIMM slots
Maximum RAM: RDIMM 1 TB
Storage
Front Bays
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 76.8 TB
Rear bays: Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB
Storage Controllers
Internal Controllers: PERC H345, PERC H745, PERC H755, PERC H755N, HBA355i
External Controllers: PERC H840, HBA355e
Software RAID S150
Internal Boot
Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs
Internal Dual SD Module or Internal USB
Security
Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Management
Embedded / At-the-Server
iDRAC9
iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
OpenManage Software
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
Mobility: OpenManage Mobile
Tools
iDRAC RESTful API with Redfish
IPMI
RACADM CLI
System Update Utility
Update Catalogs
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
Power Supplies
600 W DC/240 V
600 W Platinum AC/100 - 240 V
800 W DC/240 V
800 W Platinum AC/100 - 240 V
1100 W DC/-48–(-60) V
1100 W DC/240 V
1100 W Titanium AC/100 - 240 V
1400 W DC/240 V
1400 W Platinum AC/100 - 240 V
Up to 7 cabled fans
Ports
Network Options 2 x 1 GbE LOM and 1 x OCP 3.0
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA
Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
2 x Ethernet
1 x VGA
Internal Ports: 1 x USB 3.0 (optional)
Slots
PCIe
Up to 3 x PCIe Gen4 slots
Video Card
1 x VGA
Bezel
Optional LCD bezel or security bezel
Form Factor 1U rack server
Dimensions & Weight
Height
42.8 mm (1.68 inches)
Width
482.0 mm (18.97 inches)
Depth
734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel
Weight
Max 18.62 kg (41.05 lbs.)
