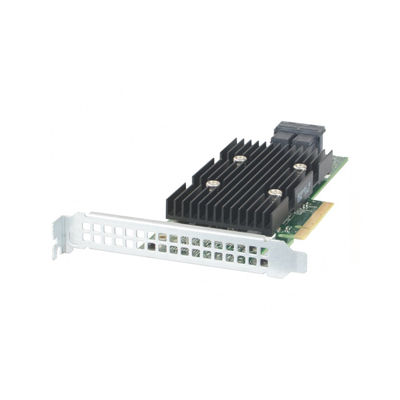

Dell PERC H310 Adapter
-
Mã sản phẩm: RAID Controller
- Hãng sản xuất :
- Bảo hành : 12 Tháng
- Tình trạng: Còn hàng
- Lượt xem: 1384
Cạc PERC H310 Adapter PCIe ( 6Gb/s)
Technical specification
Solution provided Low-cost, green SATA+SAS RAID solution for high-density servers (1U or 2U) and workstations with the flexibility
to use both SATA and SAS hard drives, solid state drives, and pass-through drive configurations
Physical dimensions 167.6mm (6.6in) x 64.4mm (2.5in) (low profile)
Connectors Two x4 internal mini-SAS SFF8087
Maximum number of
physical devices
Non-RAID: 32
RAID 0: 16 per volume
RAID 1: 2 per volume plus hot spare
RAID 5: 16 per volume
RAID 10: 16 per volume
RAID 50: 16 per volume
Host bus type 8-lane, PCI Express 2.0 compliant
Data transfer rates Up to 6Gb/s per port
SAS controller LSISAS2008
