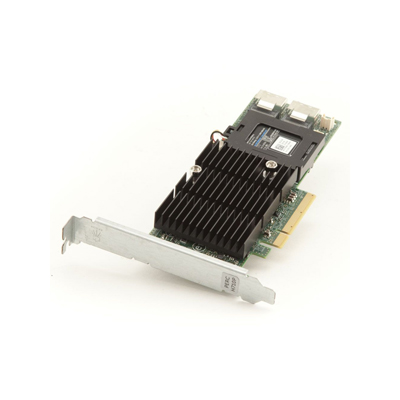

Dell PERC H710 Adapter

Feature PERC H710 technical specification

Solution provided Eight-port internal SATA+SAS solution supporting up to 32 SAS or SATA hard-disk drives (HDDs) or solid-state drives (SSDs)

Physical dimensions 167.6mm (6.6in) x 64.4mm (2.5in) (MD2 low profile)

Connectors Two internal mini-SAS SFF8088

Device support Up to 32 (SAS, SATA)

Host bus type 8-lane, PCI Express 2.0 compliant

Data transfer rates Up to 6Gb/s per port

SAS controller LSISAS2208 dual-core PowerPC ROC

Cache size 512MB

Key RAID data protection

features

RAID levels 0, 1, 5, 6

RAID spans 10, 50, 60

Online Capacity Expansion (OCE)

Online RAID Level Migration (RLM)

Auto resume after power loss during array rebuild or

reconstruction/RLM

Consistency check for background data integrity

SED drive support

Load balancing

Physical disk power management (Dimmer Switch™)

Fast initialization for quick array setup

Configurable stripe size up to 1MB

SSD support

Patrol read for media scanning and repairing

Up to 64 logical drive and 64TB LUN support

DDF compliant Configuration on Disk (COD)

S.M.A.R.T. support

Global and dedicated hot spare with revertible hot-spare

support: automatic rebuild, enclosure affinity, emergency SATA

hot spare for SAS arrays

Enclosure management: SES (inband), SGPIO (sideband)
