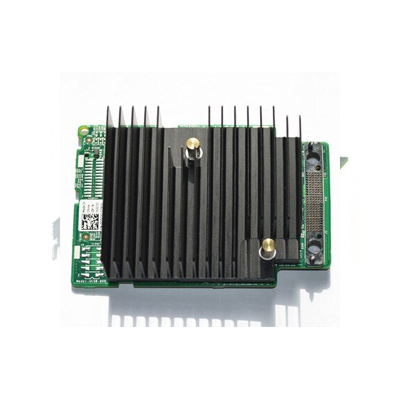

Dell PERC H330 Mini Mono

Feature PowerEdge RAID Controller H330 technical specifications

Solution provided

Low cost, entry RAID and non-RAID (passthrough) solution for high-density servers (1U or 2U) and

workstations with the flexibility to use both SATA and SAS HDDs, SSDs, and pass-through drive

configurations

Physical dimensions 167.6 mm (6.6 in) x 64.4 mm (2.5 in) (low profile)

Connectors Two x4 internal mini-SAS HD SFF8644

Maximum number of

physical devices

Non-RAID: up to 128

RAID 0: 32 per volume

RAID 1: 2 per volume plus hot spare

RAID 5: 32 per volume

RAID 10: 32 per volume

RAID 50: 32 per volume

Host bus type 8-lane, PCI Express 3.0 compliant

Data transfer rates Up to 12Gb/s per port

SAS controller LSI SAS3008
