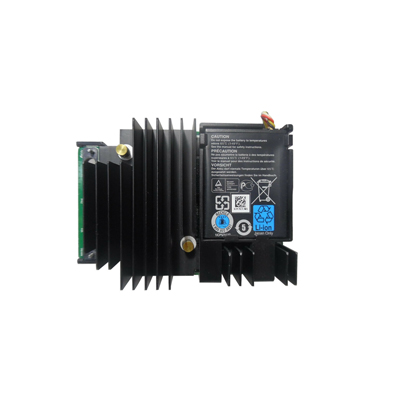

Dell PERC H730 Mini Mono

Feature PowerEdge RAID Controller H730 technical specification

Solution provided Value/performance RAID and non-RAID (pass-through) solution for high-density servers (1U or 2U) with

the flexibility to use both SATA and SAS HDDs, SSDs, and pass-through drive configurations

Physical dimensions 167.6 mm (6.6 in) x 64.4 mm (2.5 in) (MD2 low profile)

Connectors Two internal HD Mini-SAS SFF8643

Device support Up to 255 (SAS, SATA)

Host bus type 8-lane, PCI Express 3.0 compliant

Data transfer rates Up to 12Gbps per port

SAS controller LSI SAS 3108 1200MT/s PowerPC 476 dual-core 12Gbps ROC

Cache memory 1GB 1333MT/s DDR3 SDRAM

Key RAID and data protection

features

RAID levels 0, 1, 5, 6

RAID spans 10, 50, 60

Non-RAID (Pass-through)

Online Capacity Expansion (OCE)

Online RAID Level Migration (RLM)

Auto resume after power loss during array rebuild or reconstruction/RLM

Check Consistency for background data integrity

Physical disk power management (Dimmer Switch™)

4K native sector support

Workload profiles

Support for TRIM/UNMAP Commands for SAS/SATA SSDs

NVRAM “Wipe” feature- protects proprietary data once card is decommissioned

SED drive support

Load balancing

Fast initialization for quick array setup

Configurable stripe size up to 1MB

SSD support

Patrol read for media scanning and repairing

DDF compliant Configuration on Disk (COD)

S.M.A.R.T. support

Global and dedicated hot spare with revertible hot-spare support: automatic rebuild, enclosure affinity, emergency SATA
