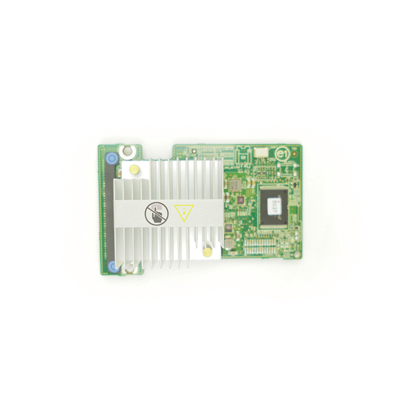

Dell PERC H310 Mini mono

Technical specification

Solution provided Low-cost, green SATA+SAS RAID solution for high-density servers (1U or 2U) and workstations with the flexibility

to use both SATA and SAS hard drives, solid state drives, and pass-through drive configurations

Physical dimensions 167.6mm (6.6in) x 64.4mm (2.5in) (low profile)

Connectors Two x4 internal mini-SAS SFF8087

Maximum number of

physical devices

Non-RAID: 32

RAID 0: 16 per volume

RAID 1: 2 per volume plus hot spare

RAID 5: 16 per volume

RAID 10: 16 per volume

RAID 50: 16 per volume

Host bus type 8-lane, PCI Express 2.0 compliant

Data transfer rates Up to 6Gb/s per port

SAS controller LSISAS2008
