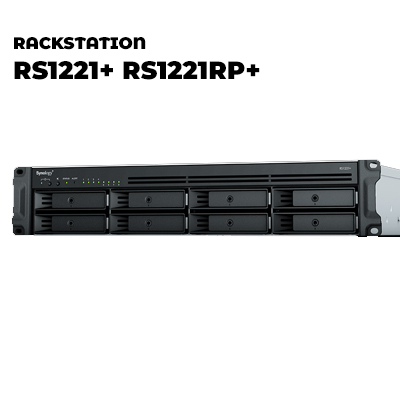

RackStation RS1221+ RS1221RP+

Tech Specs:

CPU Model  AMD Ryzen V1500B

CPU Quantity 1

CPU Architecture 64-bit

CPU Frequency 4-core 2.2 GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory 4 GB DDR4 ECC SODIMM

Memory Module Pre-installed 4 GB (4 GB x 1)

Total Memory Slots 2

Maximum Memory Capacity 32 GB (16 GB x 2)

Storage Drive Bays 8

Maximum Drive Bays with Expansion Unit 12 (RX418 x 1)

Compatible Drive Type (See all supported drives)

3.5" SATA HDD ; 2.5" SATA HDD ;2.5" SATA SSD

Maximum Single Volume Size 108 TB ; Hot Swappable Drive

External Ports: RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port 2

eSATA Port 1

PCIe Expansion 1 x Gen3 x8 slot (x4 link)

File System Internal Drives : Btrfs ; EXT4

Form Factor (RU) 2U

Size (Height x Width x Depth)

RS1221+ : 88 mm x 482 mm x 306.6 mm

RS1221RP+ : 88 mm x 482 mm x 407.5 mm

Weight

RS1221+ : 6.9 kg

RS1221RP+ : 11.7 kg

Rack Installation Support

RS1221+ :

2-post 19" rack (direct mounting)

4-post 19" rack (Synology Rail Kit - RKM114/RKS1317)

RS1221RP+ : 4-post 19" rack (Synology Rail Kit - RKS1317)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter

RS1221+ : 250 W

RS1221RP+ : 350 W

Redundant Power Supply

RS1221+ : -

RS1221RP+ : AC Input Power Voltage    100 V to 240 V AC

Warranty 3 Years
