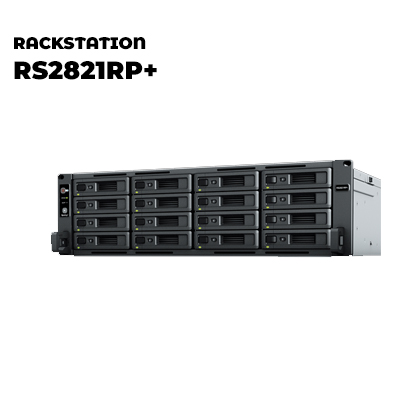

DiskStation RS2821RP+
Form Factor: 3U
CPU: AMD Ryzen V1500B
Memory: 4 GB DDR4 ECC UDIMM
Storage: Drive Bays 16 ( Hot Swappable Drive )
Maximum Single Volume Size 108TB
RAID: Synology Hybrid RAID ; JBOD ; RAID 0 , 1 , 5 , 6 , 10
PCIe: 2 x Gen3 x8 slots (x8 link)
Networking: 4 x 1GbE LAN Port
External Ports: 2 x USB 3.2
Internal Drives: Btrfs ; EXT4
Warranty: 3 Years
Tech Specs:
CPU Model AMD Ryzen V1500B
CPU Quantity: 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
Memory: System Memory 4 GB DDR4 ECC UDIMM
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Storage Drive Bays 16
Maximum Drive Bays with Expansion Unit 28 (RX1217/RX1217RP x 1)
Compatible Drive Type* (See all supported drives)
3.5" SATA HDD ; 2.5" SATA HDD ; 2.5" SATA SSD
Maximum Single Volume Size 108 TB
Hot Swappable Drive
External Ports RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port 2
Expansion Port 1
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
File System Internal Drives: Btrfs ; EXT4
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 550 W
Redundant Power Supply
Warranty 3 Years
MSP: 8 x 3.5 inch 4GB
MSP: 16 x 3.5 inch 16GB
MSP: 12 x 3.5 inch 8GB
MSP: 12 x 3,5 inch 4GB
MSP: 4 x 3.5 inch 1GB
MSP: 4 x 3.5 inch 4GB
MSP: 2 x 3.5 inch 2GB
MSP: 4 x 3.5 inch 2GB
