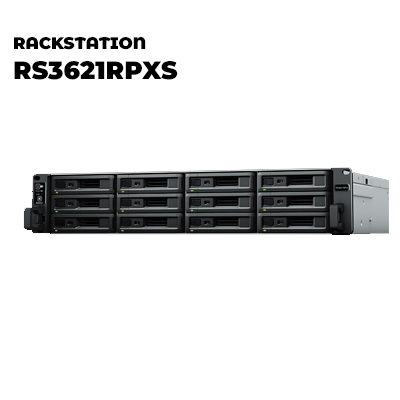

DiskStation RS3621RPxs
Form Factor: 2U
CPU: Intel Xeon D-1531
Memory: 8 GB DDR4 ECC UDIMM
Storage: Drive Bays 12 ( Hot Swappable Drive )
Maximum Single Volume Size 108TB
RAID: Synology Hybrid RAID ; JBOD ; RAID 0 , 1 , 5 , 6 , 10
PCIe: 2 x Gen3 x8 slots (x8 link)
Networking: 4 x 1GbE LAN Port
External Ports: 2 x USB 3.2
Internal Drives: Btrfs ; EXT4
Warranty: 5 Years
Tech Specs:
CPU Model Intel Xeon D-1531
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 6-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB (8 GB x 1)
Total Memory Slots 4
Maximum Memory Capacity 64 GB (16 GB x 4)
Storage Drive Bays 12
Maximum Drive Bays with Expansion Unit 36 (RX1217/RX1217RP x 2)
Compatible Drive Type (See all supported drives)
3.5" SATA HDD
2.5" SATA SSD
Maximum Single Volume :
Size 200 TB (32 GB memory required)
108 TB Hot Swappable Drive
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port 2
Expansion Port 2
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System Internal Drives
Btrfs ; EXT4
Form Factor (RU) 2U
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 500 W
Redundant Power Supply
Warranty 5 Years
