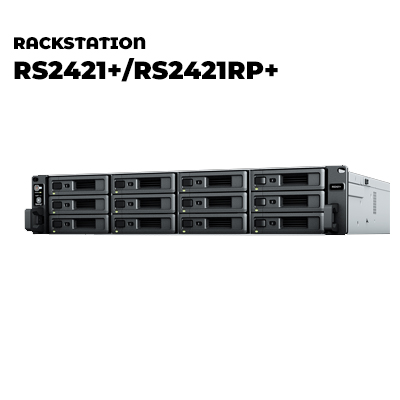

RackStation RS2421+ RS2421RP+

Tech Specs:

CPU Model Intel Xeon D-1541

CPU Quantity 1

CPU Architecture 64-bit

CPU Frequency 8-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Memory: System Memory 16 GB DDR4 ECC UDIMM

Memory Module Pre-installed 16 GB (16 GB x 1)

Total Memory Slots 4

Maximum Memory Capacity 64 GB (16 GB x 4)

Storage Drive Bays 16

Maximum Drive Bays with Expansion Unit 40 (RX1217/RX1217RP x 2)

Compatible Drive Type  (See all supported drives)

3.5" SATA HDD ; 2.5" SATA SSD

Maximum Single Volume Size

200 TB (32 GB memory required)

108 TB Hot Swappable Drive

External Ports

RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)

USB 3.2 Gen 1 Port 2

Expansion Port 2

PCIe Expansion 2 x Gen3 x8 slots (x8 link)

File System Internal Drives: Btrfs ; EXT4

Rack Installation Support   4-post 19" rack (Synology Rail Kit - RKS1317)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter 800 W

Redundant Power Supply

Warranty 5 Years
