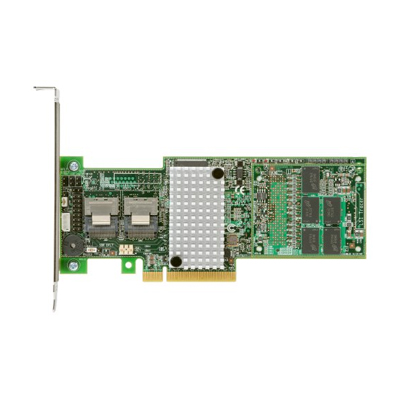

ServeRAID M5110

Technical specifications

The ServeRAID M5110 and M5110e SAS/SATA controllers have the following specifications:

PCI Low Profile, Half-length - MD2 form factor (M5110) or onboard chip (M5110e)

Eight internal 6 Gbps SAS/SATA ports

Two internal Mini-SAS connectors (SFF-8087)

6 Gbps throughput per port

800 MHz dual-core IBM PowerPC® processor with LSI SAS2208 6 Gbps RAID on Chip (ROC) controller

PCI Express 3.0 x8 host interface

Support for RAID levels 0, 1, 10 standard; support for RAID 5, 50 and 6, 60 with optional upgrades

Optional onboard data cache (DDR3 running at 1333 MHz) with the choice of:

512 MB with optional battery backup

512 MB, 1 GB, or 2 GB with flash backup (MegaRAID flash cache protection technology)

Support for SAS and SATA HDDs and SSDs

Support for intermixing SAS and SATA HDDs and SSDs; mixing different types of drives in the same array (drive group) not recommended
