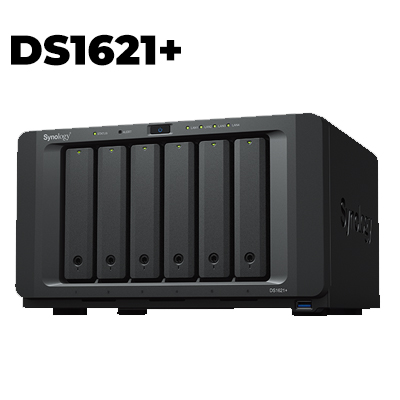

DiskStation DS1621+
CPU: AMD Ryzen V1500B 4-core 2.2 GHz
Memory: 4 GB DDR4 ECC SODIMM
Support Maximum Memory Capacity 32 GB (16 GB x 2)
Storage: Drive Bays 6 ( Hot Swappable Drive )
Maximum Single Volume Size 108TB
PCIe: 1 x Gen3 x8 slot (x4 link)
Networking: 4 x RJ-45 1GbE LAN Port
External Ports: 3 x USB 3.2 Gen 1 Port
Internal Drives: Btrfs ; EXT4
Warranty: 3 Years
Tech Spces:
CPU Model AMD Ryzen V1500B
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.2 GHz
Hardware Encryption Engine (AES-NI)
System Memory 4 GB DDR4 ECC SODIMM
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Storage Drive Bays 6
Maximum Drive Bays with Expansion Unit 16 (DX517 x 2)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type (See all supported drives)
3.5" SATA HDD; 2.5" SATA HDD; 2.5" SATA SSD; M.2 2280 NVMe SSD
Maximum Single Volume Size 108 TB, Hot Swappable Drive
Each internal volume (may consist of multiple drives) is expandable up to 108TB.
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port 3
eSATA Port 2
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
File System Internal Drives : Btrfs ;EXT4
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 250 W
AC Input Power Voltage 100 V to 240 V AC
