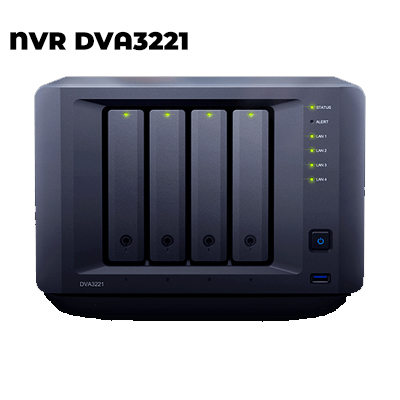

DiskStation NVR DVA3221

Tech Spces:

CPU: Model Intel Atom C3538

CPU Architecture 64-bit

CPU Frequency Quad Core 2.1 GHz

Hardware Encryption Engine (AES-NI)

GPU Model NVIDIA GeForce GTX 1650

Notes  Display output is not supported.

Memory: System Memory 8 GB DDR4

Memory Module Pre-installed 8 GB (4 GB x 2)

Total Memory Slots 2

Maximum Memory Capacity 32 GB (16 GB x 2)

Storage: Drive Bays 4 ; Maximum Drive Bays with Expansion Unit 14 (DX517 x 2)

Compatible Drive Type (See all supported drives) 3.5" SATA HDD ; 2.5" SATA HDD ; 2.5" SATA SSD

Maximum Internal Raw Capacity  64 TB (16 TB drive x 4) (Capacity may vary by RAID types)

Maximum Raw Capacity with Expansion Units  224 TB (16 TB drive x 14) (Capacity may vary by RAID types)

Maximum Single Volume Size 108 TB ; Hot Swappable Drive

Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports: RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)

USB 3.0 Port 3 ; eSATA Port 2 ; COM Port 1

Wake on LAN / WAN

Power Recovery

Noise Level 28.3 dB(A)

Scheduled Power On / Off

Power Supply Unit / Adapter 250 W

AC Input Power Voltage 100 V to 240 V AC
